Foundations

Typography and data formats

Six sizes and no seventh. Words are set in Inter; numbers people compare down a column are set in the data face.

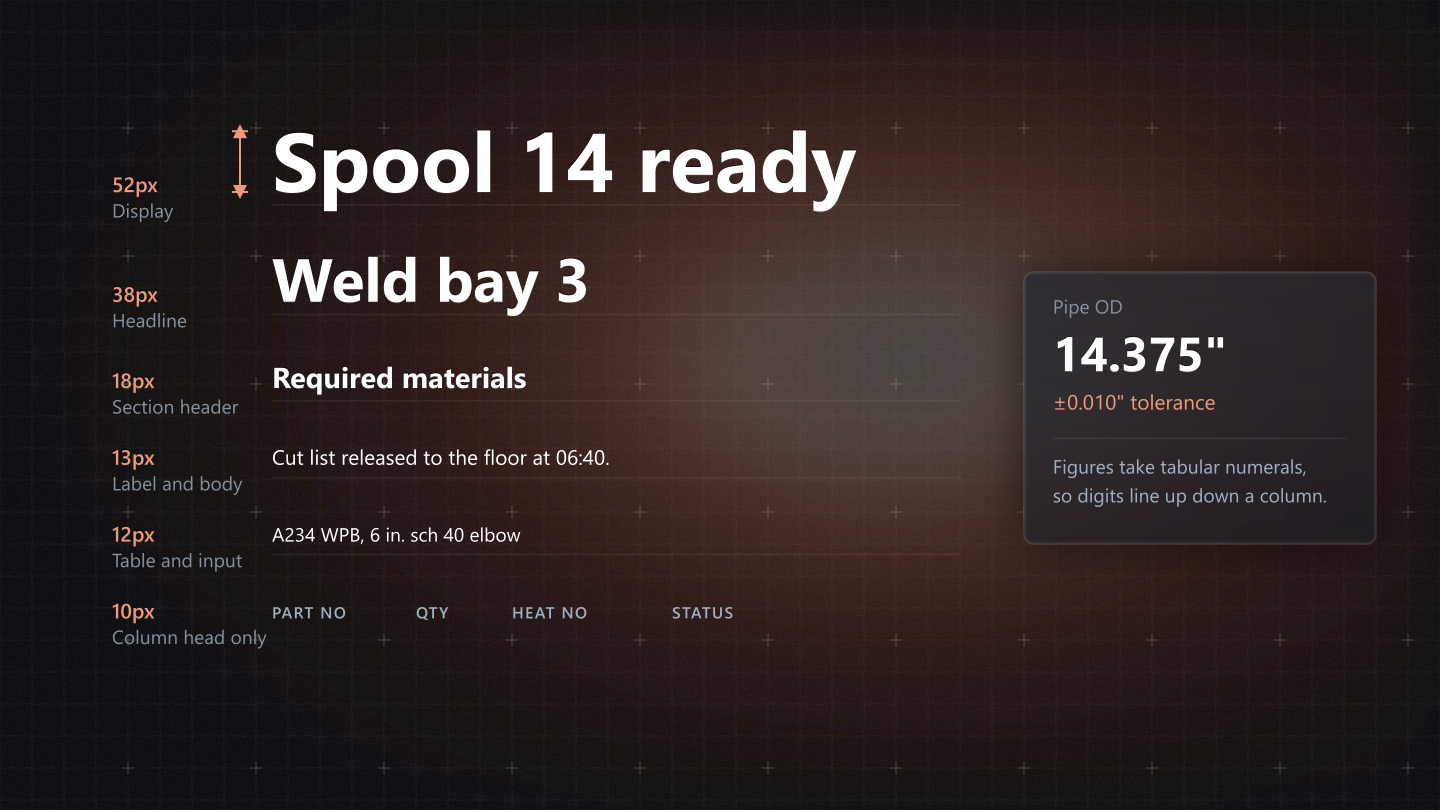

The type scale

Style	Size	Sample	Use
Display / Cover	52px	Weld fixture	Cover pages, marketing
Display / Headline	38px	Weld fixture	Page heroes
Section Header	18px	Weld fixture	View and section headers
Label & Body	13px	Weld fixture	Body copy, labels, buttons
Table & Input	12px	Weld fixture	Cells, fields, pills, hints
Dense Header	10px	Due date	Data-grid column heads only

The one 10px tier

10px uppercase on the dense tracking is a column head and nothing else. Labels, hints, values and pills are 12px. Gate C10 fails 10px anywhere outside a column head.

VendorGulf Coast Steel · net 30

Do: keep 10px for the column head and set every label, value and pill at 12px.

Avoid

VendorGulf Coast Steel · net 30Last ordered 3 weeks ago

Avoid: dropping a drawer to 10px to fit more in. It stays on the scale and still reads as unusably small.

Data formats

The data face (JetBrains Mono, through --font-mono-data) is for numbers, timestamps, currency and part serials, where a reader compares digits down a column. It never sets a sentence.

Kind	Example	Rule
Quantity	24	Data face, tabular figures, right aligned in a column
Currency	$1,284.50	Data face, two decimals, symbol leading
Timestamp	09 Oct 2026, 14:05	Data face; day before month, 24-hour
Part serial	JF0004	Data face; never truncated
Count in a chip	3/24 rcvd	Inter with tabular figures, not the data face
No value	-	A hyphen in muted text, or nothing

PO PO-3514215 arrives Friday with 24 of 24 lines.

Do: set the sentence in Inter and only the identifier in the data face.

Avoid

PO PO-3514215 arrives Friday with 24 of 24 lines.

Avoid: monospace in continuous prose. It slows reading and hides the one value that matters.

Punctuation

No em dashes in anything the app writes: labels, hints, toasts, empty states or cells. Use a colon, a comma, parentheses or a full stop. An empty cell shows a hyphen in muted text.

ASME B16.9 (A234 WPB), not a dash between the two.
Damaged: batch quarantined.
Text the app only displays, like a vendor description, is data: it can be normalised for display but is never rewritten.
